Our patented HELIX Oscillating Biomixer® is a highly versatile mixer with multiple uses. We designed it as a pilot and small batch, self-mixing, closed system mixer that eliminates problems associated with traditional vessels.
THE IDEAL BLENDING AND STORAGE SOLUTION FOR ALL AREAS OF LIFE SCIENCES

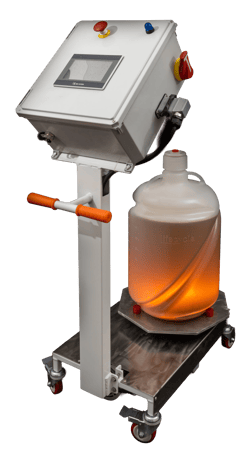

The HELIX integrates dynamic radial fins to blend or mix components with an external and programmable oscillating action to impart the exact amount of shear required thus eliminating the need for mixing blades or magnets. These fins are molded into the bottle itself to move material upward when rotated in one direction and downward when oppositely rotated, thus the oscillation creates a unique mixing pattern. When used with our programmable Turn-Table, any mixing profile can be applied depending on the raw material characteristics. Low-shear, sensitive cellular work is possible with one program and difficult powder can be accomplished with another, all with the same equipment. The lightweight and leak-proof HELIX is constructed of Class VI polypropylene and can be sterilized in an autoclave and there is no need to open the vessel after components are charged thus minimizing contamination risk.
Requires no inserted mixer, minimizing contamination risks when used with its Turn-Table
Unique mixing platforms that can be fully programmed to deliver the desired amount of shear
Closed system design to prevent microbial and non-viable contamination
Manufactured with USP Class VI Polypropylene, making it fully recyclable and designed for years of work
Cost Effective and produced in the USA under cGMPs in our ISO 9001 facility
Light Weight, Leak Proof and Shatter Proof
Reference gradation markings for both gallons and liters molded in the plastic with screw threads compatible with other 3rd party cap systems
Can be sterilized by Autoclave, ETO or chemical sanitization
Who is the Helix for?
Process Scientists needing a faster, cleaner or more gentle mixing system
Manufacturers needing an easier and more secure liquid storage vessel
Cell Biologists need a cost effective bioreactor for supporting cell growth with superior and constant distribution of nutrients
Supply Chain Professionals needing to diversify and simplify their cost controlled vessel programs
Using the Helix Oscillating Biomixer®
